RK2G-Plasma

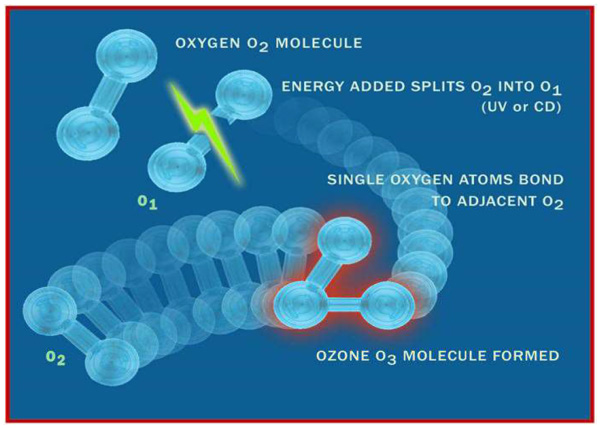

Ozone is a powerful oxidizer that can safely be used in multiple industrial and commercial applications. It helps break down organic molecules, renders dissolved metals insoluble and oxidizes inorganic contaminants. Ozone is formed when highly energetic radiation strikes molecules of oxygen and cause the two oxygen atoms to split apart in a process called photolysis. The freed atom collides with another oxygen molecule and joins it, forming ozone.
Ozone will help kill harmful microorganisms including Fecal Coliforms commonly associated with marine mammal exhibits. In exhibits with underwater viewing panels, ozone will help improve water clarity by breaking down organic and tannins in the water column. Ozone can also help to control chloramine levels and reduce chlorine consumption within exhibits utilizing chlorination systems. Most importantly, ozone is a safe, sustainable and environmentally friendly oxidizer. Being a three-part oxygen molecule, ozone dramatically increases oxygen concentration.

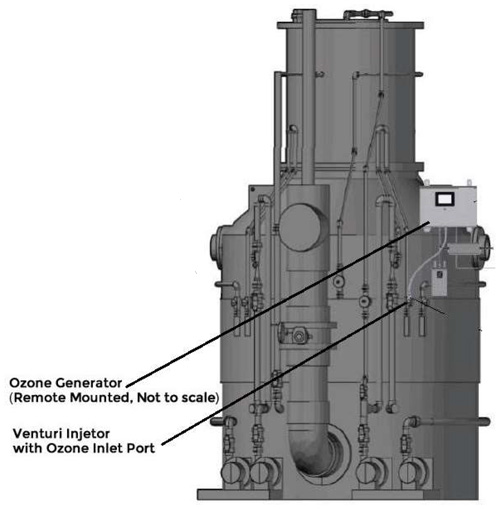

Ozone injection enhances the foam fractionation process. The ozone breaks down larger organic molecules which facilitates their removal by foam fractionation. The foam fractionation and ozone combination is extremely effective in a variety of applications. Grow-out tank and aquaria display with a heavy biological load will become remarkably cleaner. Clean systems such as larval rearing or live animal holding tanks can become exceptionally clear. This combination is excellent for recirculating aquaculture systems, (RAS), for both finfish and shellfish alike.

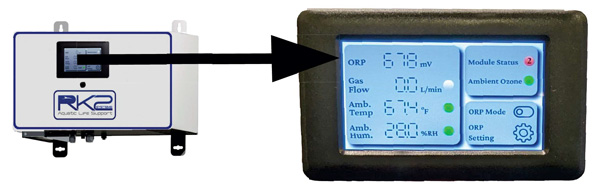

Developed by a major university's plasma lab team, RK2 Plasma Ozone Systems provide the aquarium and aquaculture industries with real time ozone functionality. These units check their own operational performance and the information is displayed on our full color high definition HMI touchscreen. The ORP level, (Oxidation Reduction Potential), provides an exact analysis of your aquatic system. Our ORP read-out lets you know immediately the health of the water with no guesswork as to whether the ozone system is operating correctly. With an extremely low energy consumption and our user-friendly HMI interface, RK2's Plasma Ozone Systems are perfectly suited for the 21st century.
Model | Recommended Air Flow Rates | Power Consumption 100-250VAC 50/60Hz |

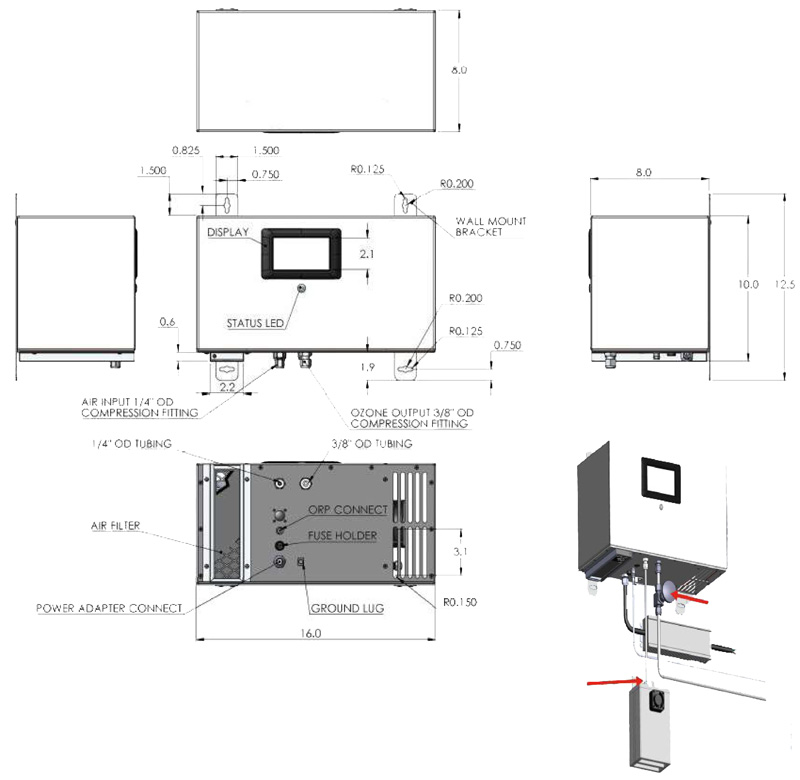

Dimensions (inches) LENGTH X HEIGHT X WIDTH |
Weight | Concentration By Weight | Recommended Skimmer Models |
---|---|---|---|---|---|---|
2G-PLASMA | 21 SCFH/10 LPM | 115 watts | 16" X 10" X 8" | 16 LBS./35 KGS | .3% by weight | RK10AC/RK25PE/RK50PE |
5G-PLASMA | 12 SCFH/6 LPM | 85 watts | 16" X 10" X 8" | 16 LBS./ 35 KGS | 1.5% by weight | RK75PE/RK75-HF/RK150PE/RK150PE-HF |
10G-PLASMA | 12 SCFH/6 LPM | 145 watts | 16" X 10" X 8" | 16 LBS./35 KGS | 2.5% by weight | RK300PE/RK300PE-HF RK600PE/RK600PE-HF RK1000PE/RK2000PE |
