3x2-6
3x2-6-FK

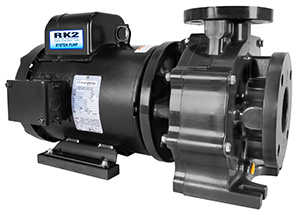

Our vision of creating cost effective energy efficient solutions is unwavering - in partnering with MDM, Inc, we are proud to introduce our 3x2-6 System Pump series. The proven B73leanĀ® design of the 3x2-6 System Pump is lowering total cost of ownership from basic applications to more technologically advanced facilities around the globe. The 3x2-6 System Pump consists of a non-metallic, end-suction centrifugal pump line is designed and engineered to provide highly efficient pumping solutions.
Bulk Compression Molded thermosetting polymers provides our 3x2-6 System Pumps with a set of material properties that are better than metallic or thermoplastic components, including equal or higher strengths and stiffness, higher dimensional stability, and compatibility with many aggressive chemistries.
The 3x2-6 System Pump allows for Wire-to-water efficiencies in the high seventies [78%]. Up to 2-Pole (3450) speeds, the innovative internal pump passages provide optimized balance of flow and pressure. Operation in parallel and series configurations give the end user low-cost solutions for redundancy with massive performance in a small package.
FLOW GPM |
SPEED RPM |
HEAD FT |
EFF. % |
POWER HP |
NPSHr FT |
---|---|---|---|---|---|
253 | 1750 | 12.1 | 35.9 | 2.09 | 11.6 |
211 | 1750 | 24.6 | 64 | 2.04 | 8.71 |
169 | 1750 | 32.8 | 73.8 | 1.89 | 7.51 |
127 | 1750 | 38.4 | 74.2 | 1.65 | 7.13 |
84.4 | 1750 | 41.8 | 64.9 | 1.36 | 6.16 |
DATA POINT | |
---|---|
Flow: | 146 gpm |
Head: | 36.4 ft |
Efficiency: | 75.8% |
Power: | 1.77 hp |
NPSHr: | 7.29 ft |
DESIGN CURVE | |
Shutoff head: | 43.1 ft |
Shutoff dP: | 18.7 psi |
Min Flow: | 50 gpm |
BEP: | 75.8% @ 146 gpm |
NOL Power: | 2.09 hp @ 234 gpm |
MAX CURVE | |
Max Power: | 2.09 hp @ 234 gpm |
FLOW GPM |
SPEED RPM |
HEAD FT |
EFF. % |
POWER HP |
NPSHr FT |
---|---|---|---|---|---|
253 | 1750 | 12.1 | 35.9 | 2.09 | 11.6 |
211 | 1750 | 24.6 | 64 | 2.04 | 8.71 |
169 | 1750 | 32.8 | 73.8 | 1.89 | 7.51 |
127 | 1750 | 38.4 | 74.2 | 1.65 | 7.13 |
84.4 | 1750 | 41.8 | 64.9 | 1.36 | 6.16 |
DATA POINT | |
---|---|
Flow: | 146 gpm |
Head: | 36.4 ft |
Efficiency: | 75.8% |
Power: | 1.77 hp |
NPSHr: | 7.29 ft |
DESIGN CURVE | |
Shutoff head: | 43.1 ft |
Shutoff dP: | 18.7 psi |
Min Flow: | 50 gpm |
BEP: | 75.8% @ 146 gpm |
NOL Power: | 2.09 hp @ 234 gpm |
MAX CURVE | |
Max Power: | 0.184 hp @ 31.4 gpm |
