Freshwater Fractionation has all of the same added benefits you'd see in a saltwater application. It removes suspended particulates, dissolved organics, proteins, and tints while also increasing dissolved oxygen levels. If you plan on using ozone within your application our Freshwater Fractionators double their role to act as an ozone contact chamber, reducing the amount of equipment and floor space required to carry out the process.
We have spent years refining our protein fractionator designs to be used in freshwater applications. Our Freshwater Fractionators have all of the same great standard features as our saltwater foam fractionators. What makes our Freshwater models different is the attention to details and understanding of the fractionation process. Freshwater is far less dense the saltwater, therefore the bubbles created rise to the surface much quicker when compared to bubbles being created via the same process in saltwater. These bubbles also expand in size faster as they are rising to the foam column, making it difficult to produce a stable foam column. To account for these differences in the freshwater process, we alter two key areas within our design.
First, we utilize larger venturi pumps when compared to the saltwater counterpart to operate our air injection manifolds. By doing so, it allows for more bubbles to rise up into to the foam column.

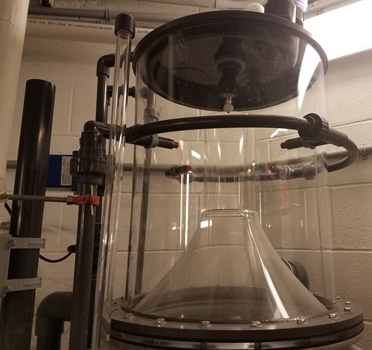

The second and more important component within our design is the foam riser cone. Instead of using one large 6 or 8" diameter cone, we utilize a series of smaller risers to create the same diameter for our foam to be exported from the system. By doing so, we prevent the foam from expanding too quickly, bursting and collapsing on itself. Although it is not required, it is recommended to use ozone to help increase the efficiency of the foam fractionation process in freshwater.
RK150PE
RK600PE
RK2 has been providing customized and upgraded options to our fractionators for years. We've had some unique requests over the past 25+ years but we've been able to meet them all. Is a model too tall for your desired location? Do you need different inlet/outlet sizes than what's standard? Have a preference to using true union ball valves?Not to worry, RK2 Systems has you covered with a wide range of available upgrades Call us today to discuss your requirements as we are willing and able to assist you with any custom configuration required.
Here's a few examples of what we can do for you:
Schedule 80 Plumbing (Upgrade)
True Union Ball Valves, Asahi or Hayward (Upgrade)
Custom Heights
RK2 SYSTEMS MODEL | WATER FLOW RATE @2 MIN. CONTACT TIME |
WATER FLOW RATE @1.5 MIN. CONTACT TIME |
WATER FLOW RATE @1 MIN. CONTACT TIME |
REACTION CHAMBER DIAMETER | VENTURI PUMP MODEL NUMBER AND QUANTITY REQUIRED | TOTAL HEIGHT FROM FLOOR TO TOP OF FRACTIONATOR | DIMENSIONAL FOOTPRINT | DRY WEIGHT | OPERATIONAL WEIGHT |
---|---|---|---|---|---|---|---|---|---|
RK25PE-FW | 20 GPM | 35 GPM | 14" | 45022.504 - 115/230V 60HZ 1 PH 45026.104 - 220V 50HZ. 1 PH QUANTITY 1 |
77" | 24" X 36" | 102 LBS | 440 LBS | |
RK50PE-FW | 40 GPM | 60 GPM | 20" | 45052.304 - 115/230V 60HZ 1 PH 45056.104 - 220V 50HZ. 1 PH QUANTITY 1 |
99" | 32" X 44" | 220 LBS | 1,050 LBS | |
RK75PE-FW | 70 GPM | 105 GPM | 24" | 45072.304 - 115/230V 60HZ 1 PH 45076.104 - 220V 50HZ. 1 PH QUANTITY 1 |
102" | 32" X 44" | 235 LBS | 1,400 LBS | |
RK75PE-HF-FW | 105 GPM* | 140 GPM* | 24" | 45102.304 - 115/230V 60HZ 1 PH 45106.104 - 220V 50HZ. 1 PH QUANTITY 1 |
102" | 32" X 44" | 235 LBS | 1,400 LBS | |
RK150PE-FW | 155 GPM | 230 GPM | 36" | 45152.304 - 115/230V 60HZ 1 PH 45156.104 - 220V 50HZ. 1 PH QUANTITY 1 |
101" | 41" x 54" | 365 LBS | 2,980 LBS | |
RK150PE-HF-FW | 230 GPM* | 310 GPM* | 36" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
101" | 41" x 54" | 365 LBS | 2,980 LBS | |
RK300PE-FW | 290 GPM | 435 GPM | 48" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
110" | 54" x 66" | 440 LBS | 5,080 LBS | |
RK300PE-HF-FW | 435 GPM* | 580 GPM* | 48" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
110" | 54" x 66" | 440 LBS | 5,080 LBS | |
RK600PE-FW | 585 GPM | 890 GPM | 60" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 2 |
144" | 69" x 78" | 750 LBS | 10,685 LBS | |
RK600PE-HF-FW | 890 GPM* | 1,190 GPM* | 60" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 2 |
144" | 69" x 78" | 750 LBS | 10,685 LBS | |
RK1000PE-FW | 1,100 GPM | 1,650 GPM | 84" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 4 |
144" | 92" x 114" | 900 LBS | 20,375LBS | |
RK2000PE-FW | 1,500 GPM | 2,000 GPM | 84" | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 4 |
168" | 94" x 114" | 1,200 LBS | 25,540 LBS | |
PRO SERIES MODELS AVAILABLE AND INCLUDE THE FOLLOWING - SCHEDULE 80 PVC PLUMBING, ELECTRONIC WASH DOWN ASSEMBLES FOR INTERNAL AND EXTERNAL RINSE SYSTEMS, OZONE DESTRUCT AIR INLET VENT AND BULKHEAD FITTINGS IN PLACE OF FLEXIBLE TANK ADAPTERS | |||||||||
* HF MODEL FLOW RATES REFLECT 1.5 - 1 MINUTE CONTACT TIMES |
RK2 SYSTEMS MODEL | WATER FLOW RATE @2 MIN. CONTACT TIME |
WATER FLOW RATE @1.5 MIN. CONTACT TIME |
WATER FLOW RATE @1 MIN. CONTACT TIME |
REACTION CHAMBER DIAMETER | VENTURI PUMP MODEL NUMBER AND QUANTITY REQUIRED | TOTAL HEIGHT FROM FLOOR TO TOP OF FRACTIONATOR | DIMENSIONAL FOOTPRINT | DRY WEIGHT | OPERATIONAL WEIGHT |
---|---|---|---|---|---|---|---|---|---|
RK25PE-FW | 76 LPM | 133 LPM | 35.56 CM | 45022.504 - 115/230V 60HZ 1 PH 45026.104 - 220V 50HZ. 1 PH QUANTITY 1 |
195.58 CM | 61.96 CM X 91.44 CM | 47 KG | 200 KG | |
RK50PE-FW | 152 LPM | 228 LPM | 50.80 CM | 45052.304 - 115/230V 60HZ 1 PH 45056.104 - 220V 50HZ. 1 PH QUANTITY 1 |
251.46 CM | 81.28 CM X 86.36 CM | 100 KG | 477 KG | |
RK75PE-FW | 265 LPM | 398 LPM | 60.96 CM | 45072.304 - 115/230V 60HZ 1 PH 45076.104 - 220V 50HZ. 1 PH QUANTITY 1 |
259.08 CM | 81.28 CM X 86.36 CM | 107 KG | 636 KG | |
RK75PE-HF-FW | 398 LPM* | 530 LPM* | 60.96 CM | 45102.304 - 115/230V 60HZ 1 PH 45106.104 - 220V 50HZ. 1 PH QUANTITY 1 |
259.08 CM | 81.28 CM X 86.36 CM | 107 KG | 636 KG | |
RK150PE-FW | 587 LPM | 871 LPM | 91.44 CM | 45152.304 - 115/230V 60HZ 1 PH 45156.104 - 220V 50HZ. 1 PH QUANTITY 1 |
256.54 CM | 104.14 CM X 137.16 CM | 166 KG | 1,352 KG | |
RK150PE-HF-FW | 871 LPM* | 1,174 LPM* | 91.44 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
256.54 CM | 104.14 CM X 137.16 CM | 166 KG | 1,352 KG | |
RK300PE-FW | 1,098 LPM | 1,647 LPM | 121.92 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
279.40 CM | 137.60 CM X 167.64 CM | 200 KG | 2,305 KG | |
RK300PE-HF-FW | 1,647 LPM* | 2,196 LPM* | 121.92 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 1 |
279.40 CM | 137.60 CM X 167.64 CM | 200 KG | 2,305 KG | |
RK600PE-FW | 2,215 LPM | 3,370 LPM | 152.40 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 2 |
365.76 CM | 175.26 CM X 198.12 CM | 341 KG | 4,847 KG | |
RK600PE-HF-FW | 3,370 LPM* | 4,505 LPM* | 152.40 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 2 |
365.76 CM | 175.26 CM X 198.12 CM | 341 KG | 4,847 KG | |
RK1000PE-FW | 4,164 LPM | 6,246 LPM | 213.36 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 4 |
365.76 CM | 233.68 CM X 289.56 CM | 409 KG | 9,242 KG | |
RK2000PE-FW | 5,679 LPM | 7,571 LPM | 213.36 CM | 45202.304 - 115/230V 60HZ 1 PH 45206.104 - 220V 50HZ. 1 PH QUANTITY 4 |
426.72 CM | 238.76 CM X 289.56 CM | 545 KG | 11,585 KG | |
PRO SERIES MODELS AVAILABLE AND INCLUDE THE FOLLOWING - SCHEDULE 80 PVC PLUMBING, ELECTRONIC WASH DOWN ASSEMBLES FOR INTERNAL AND EXTERNAL RINSE SYSTEMS, OZONE DESTRUCT AIR INLET VENT AND BULKHEAD FITTINGS IN PLACE OF FLEXIBLE TANK ADAPTERS | |||||||||
* HF MODEL FLOW RATES REFLECT 1 - 1.5 MINUTE CONTACT TIMES |
